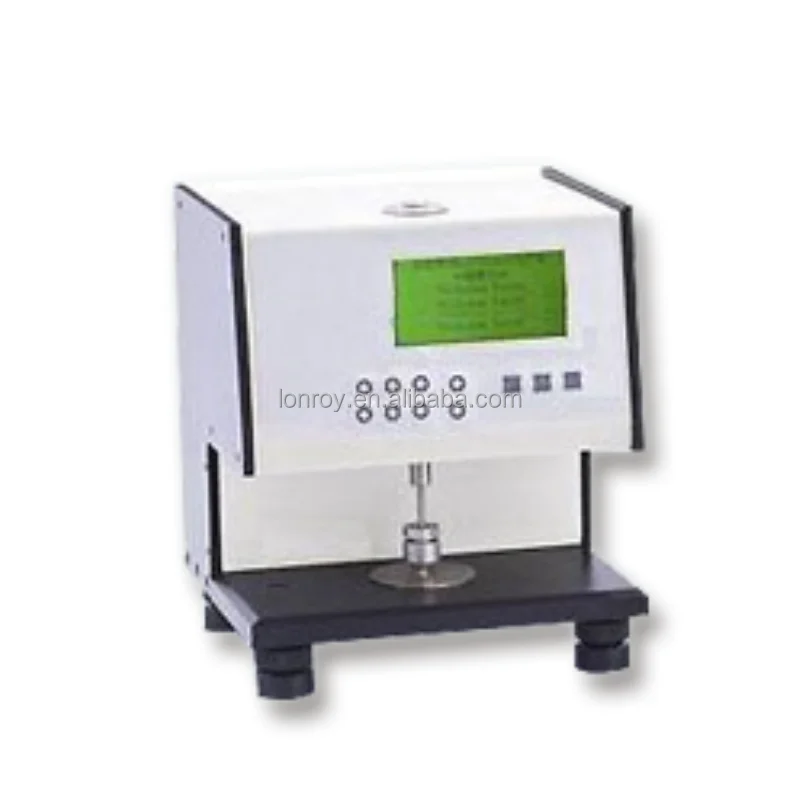

ISO 9863 Compliant Computer Controlled Geosynthetic Thickness Tester with 0.001mm Resolution and 220V Power Supply

Name: ISO 9863 Compliant Computer Controlled Geosynthetic Thickness Tester with 0001mm Resolution and 220V Power Supply
Brand: Lonroy
Price: 1 USD

Quality ISO 9863 Compliant Computer Controlled Geosynthetic Thickness Tester with 0.001mm Resolution and 220V Power Supply for sale

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Power : 100W

Protection Class : IP56

Voltage : 220 V

Resolution : 0.001mm

Power supply : AC220V ± 10%

Dimensions : 600mm * 550mm * 450mm

Foot Pressure Area : 25cm (circular diameter: 56.42mm)

Stabilization Time : 10S, 20S, 30S, 40S, 50S

Test Pressure : 2 ± 0.01KPa; 20 ± 0.1KPa; 200 ± 0.1KPa

Test Thickness : 0 - 25mm

Measurement Method : Single-point measurement and multi-point measurement

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

ISO 9863 Computer Controlled Geosynthetic Materials Thickness Measuring Meter Equipment Geotextile Thickness Tester

Product Description

Scope of application

Used for measuring the thickness of geosynthetic materials and related products under different pressures and within specified time periods.

Conforming to standards

JTG E50, ISO 9863, GB/T 13761

ISO 9863 Computer Controlled Geosynthetic Materials Thickness Measuring Meter Equipment Geotextile Thickness Tester

Technical Specification

Foot Pressure Area	25cm (circular diameter: 56.42mm) or other areas
Stabilization Time	10S, 20S, 30S, 40S, 50S (can be set arbitrarily)
Test Pressure	2 ± 0.01KPa; 20 ± 0.1KPa; 200 ± 0.1KPa and other pressures
Test Thickness	0 - 25mm
Resolution	0.001mm
Measurement Method	Single-point measurement and multi-point measurement can be selected arbitrarily
Power Supply Voltage & Power	Power supply voltage: AC220V ± 10%; Power: 100W
Dimensions	600mm * 550mm * 450mm
